Automatic plastic pp packing strip making machine

FOB Reference Price:Get Latest Price
US $86,888-112,888 / Sets | 1 Set/Sets Environment friendly intelligent PP light strapping band making (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
strip making, Automatic plastic pp packing strip making machine
Plastic Processed:
PP
Screw Design:
Single-screw
Automatic Grade:
Automatic
Place of Origin:
Sichuan, China (Mainland)
Brand Name:
YZJ
Model Number:
YZJPP[LQD3-V]
Voltage:
380V/50HZ/3P(customized)
Power(W):
120kw
Dimension(L*W*H):
38M*3M*2.5M
Weight:
8-10T
Certification:
CE
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
plastic packing strip making machine
Main motor power:
22 KW
width:
8-15.5mm
thickness:
0.5-0.8mm
Name:
plastic strap band making machine
keyword:
strip making machine
Type:
Extrusion Line
Raw material:
PP
Warranty:
1 Year
Supply Ability
Supply Ability:
5 Set/Sets per Month Environment friendly intelligent PP light strapping band making
Packaging & Delivery
Packaging Details
Environment friendly intelligent PP light strapping band making machine is packaged by standard export package
Port
chongqing
Lead Time :
45 workdays after payment
Product Description
Machine model
YZJPP [LQD3-V]
Optional
name
name
Machine name
/
/
Suitable for
virgin pp
/
/
Max extrusion capacity
125KG/H
/
/
Yield
3 strap
/
/
pp strap width
8—15.5 mm


pp strap thickness
0.5-0.8 mm


Screw material
38CrMoAL
38CrMoAL
/
Barrel material
38CrMoAL
38CrMoAL
/
Weight of the machine
10 T
/
/
Machine line length
32 m
/
/
Equipment has been sold country
Vietnam, Egypt, Mexico, Sri Lanka, Lebanon ...
......

Note:

If the customer needs the technical parameters of other products, please click on the inquiry link, send inquiry.

Extruder

Extuder has hard tooth face gear box, variable frequency motor, inverter, screw, barrel, heating coil, auto loader, dryer hopper and die head with extruding and plasticizing function.

Cooling tank has stainless steel tank body, guiding rod , water-thermometer,water level regulator with the function of cooling the big strap from fie head to change molecular structure in order to get good quality strap.

Three stretching unit

First stretching unit is to stretch the big strap after the cooling , into the oven and to adjust the suitable size of the big strap.

Second stretching unit  is to offer the stretching force for the pp strap after stretching oven and to ensure the pp strap completely formed and stretched and then to transport it to the embossing unit.

Third stretching unit is ......

Stretching oven/Forming oven

Stretching oven
It's function  is to heat the big strap in order to match with the secong stretching.

Forming oven
It's function is relieving stress and to finalize the pp strap.

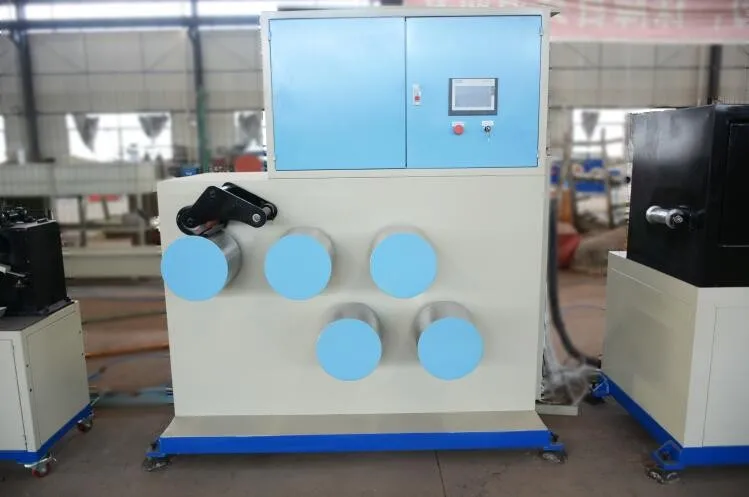

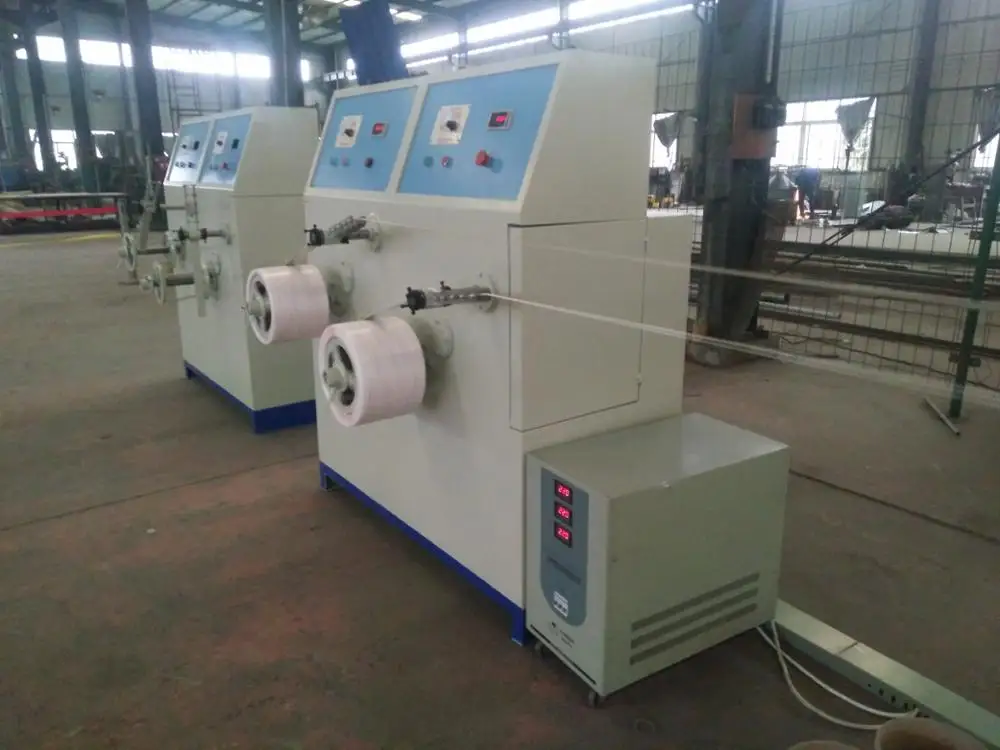

Winder

Winder has  torque motor ,metering inductor ,winding system. It's function is to wind and count the pp strap.

Packaging
Packaging
External wooden packaging and internal stretch film
Packaging size
The actual size shall prevail
Gross weight
Subject to actual weight.
MOQ
1 set
Delivery
Ocean Shipping
Low cost, aviation can not walk the basic products can go.
land transportation
/
 air transport
Time is short, usually about 3-4 days to reach the destination airport.

Note:

If the customer needs more product information, please click on the inquiry link, send inquiry.

About Us

1.Company Profile

Established in 1995

Covers more than 200,000 Square meters

Over 52% staff working for technology and marketing

12 elements of (yzj) group

Exports products all over the world.

Vision: To be the BEST S&T Enterprise in the field of plastic processing industry.

2.Technical skills

National High and New Technology Enterprise
Scientific and Technological Innovation Enterprises
Advantage of Growing Enterprise
Intellectual Property Experimental Enterprise
Famous Brand
Won more than 300 patents, the average annual patent more than 50 items

3.Team introduction

Over 52% staff working for technology and marketing

Technology Center

Marketing Center

Financial Center

4.Production scene

Mechanical workshop:

For the production of machinery and equipment, for customers to check machine equipment.

Plastic workshop:

We produce packing tape production equipment, while producing plastic packing tape.

5.Customer photo

Lebanon customer visit

Vietnamese customers visit

Egyptian customer visit

Egypt site installation and commissioning

Egypt site installation and commissioning

Sri Lanka site installation and commissioning

our service

pre-sale service

1.Sample testing, cost estimates, samples (shipping borne by the customer), factory inspection test machine

After-sales service

1. Free installation and commissioning equipment, training operators, life-long equipment maintenance (paid), regular after-sales visits


2. Our service-line is offered 24 hours with a quick respond: respond within 12 hours for domestic customer, 20 hours for international customer.

FAQ:

Q1. Do you have equipment to see it live?
A: Yes. Welcome everyone's arrival.

Q2. Equipment delivery time?
A: The delivery time of equipment generally takes more than 30-60 days.

Q3. How to deal with orders?
A: Let us first know your request or application.
Second, we quote your request or our suggestion.
Third, the customer confirms the required equipment and deposits it into a formal order.
Fourth, we arrange production.

Q4: Do you provide product warranty?
A: Yes, we provide a one-year warranty for our products.

Q5: How to handle the error?
A: First of all, our products are produced under strict quality control system with a failure rate of less than 0.1%.
Second, during the warranty period (except for wearing parts), we solve the problem by phone or by video. For big problems, we will arrange technician on-site debugging.

Q6: After the purchase of equipment, to provide overseas installation and commissioning services?
A: Yes, we will arrange technical personnel to the site to install and debug.

※ All specifications and designs are subject to change without notice.
※ According to the customer's request.
