Tile packing belt production machinery and pp plastic strap making machine

FOB Reference Price:Get Latest Price
US $7,988-11,999 / Sets | 1 Set/Sets Tile packing belt production machinery and pp plastic strap maki (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Sichuan, China (Mainland)
Brand Name:
YZJ
Model Number:
YZJ[ZQXD1-IV]
Voltage:
220V
Power(W):
22KW
Weight:
2.2T
Dimension(L*W*H):
32mx1.5mX2m
Certification:
ISO9001 CE
Warranty:
One Year
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
Tile packing belt production machinery
Other name:
Enhanced pp strap making machine
Application:
PP strapping machine line
Cutting Method:
Back Rolling Cutting
Pressure:
120 T
Export Markets:
America
Commodity name:
pp plastic strap making machine
Product:
PP strapping machine line
Type:
Belt Processing Machine
Item:
Satin Ribbon Making Machine
SupplyAbility
SupplyAbility:
2 Set/Sets per Month Tile packing belt production machinery and pp plastic strap maki
Packaging & Delivery
Packaging Details
Tile packing belt production machinery and pp plastic strap making machine is packed by stretch film packing and wooden box outside as customer's requirement, or nuke packed.
Port
chongqing/shanghai
Lead Time :
30day
Video Description
Product Description

Product Application

     Tile packing belt production machinery and pp plastic strap making machine is specially used for the  products with good quality, light gram weight and well rigidity. Its high-speed low-temperature stretching technology and optimized structure may reduce energy consumption to the maximum extent, simplify operating procedure and realize digital displayed accurate control. The unit has advantages of energy saving, great extrusion pressure, optimal embossing effect, high output, good formation, convenient maintenance, simple operation, safety and reliability.

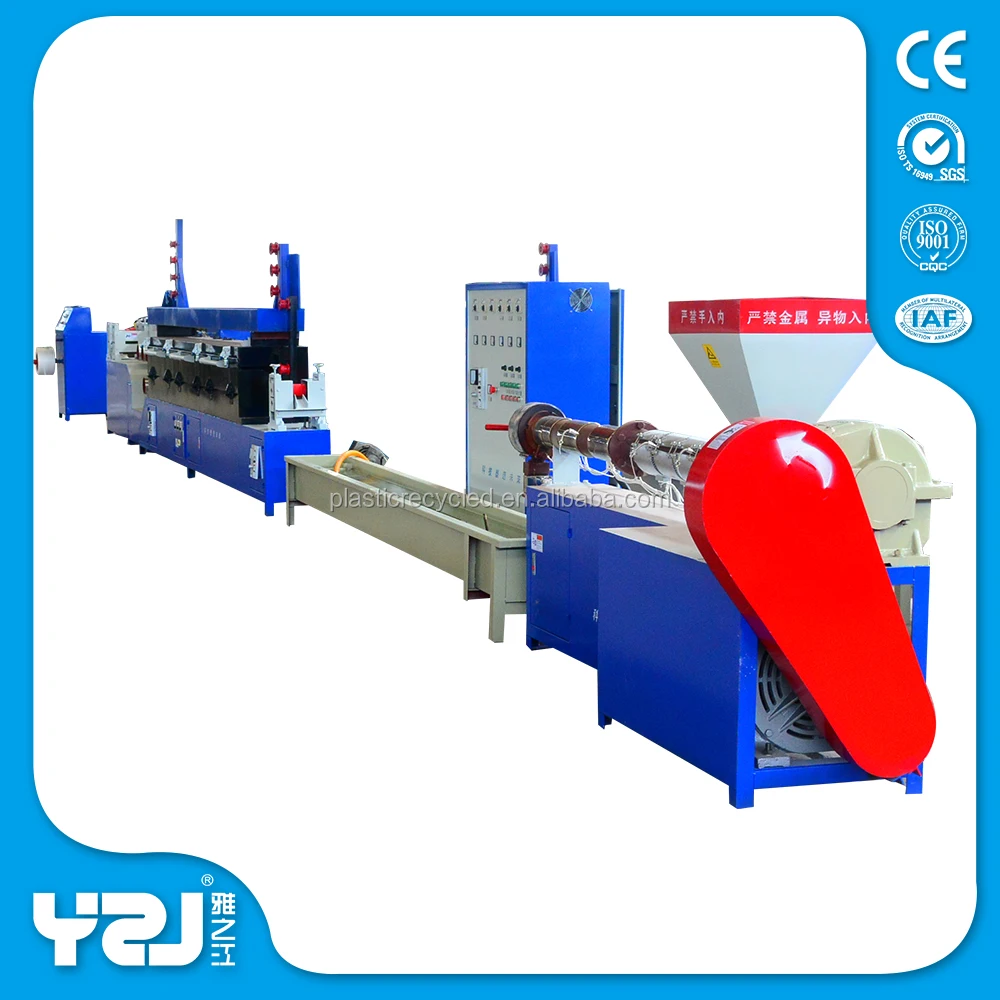

Tile packing belt production machinery and pp plastic strap making machine

Engine
Engine model
Kw/rpm
11/1440
Net Power
KW
80

Main performance parameters
Main performance parameters
m/min
120-200
Width of the Pp Strap
mm
10、12、13.5、15
Thickness of the Pp Strap
mm
0.7-1.4
Max. Capactiy
Kg/h
80



The parameters of PP strap 12006
Weight
g/m
4-4.5
The fracture strain
KN
About 1200
Width
mm
12
Thickness
0.6mm
0.58-0.62
The Deviation of Width
mm
±0.6
The Deviation of Width
mm
±0.07

Main Features

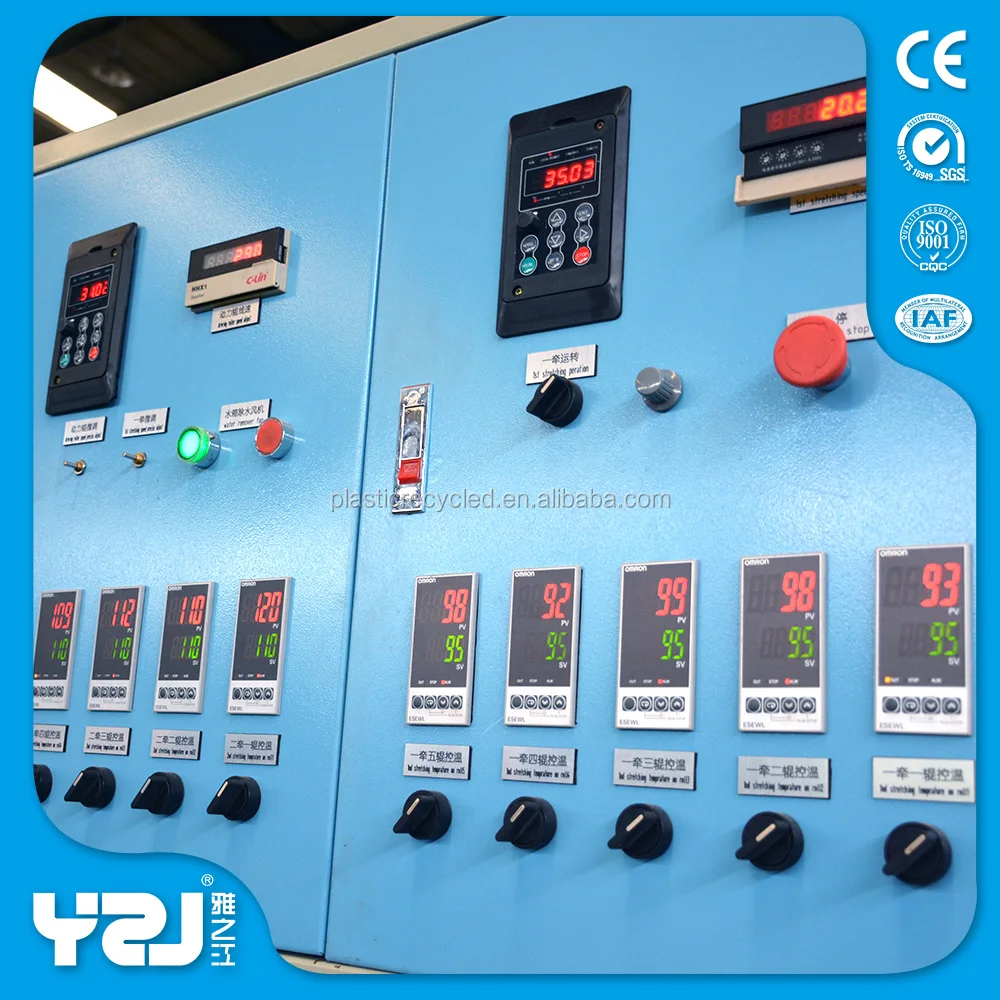

1) PLC control system making the operation more easy and lower request;

2)Reciprocating super-long distance low-temperature stretching, great stretching times, good rigidity of finished band;

3) Light heat setting unit, differential speed traction design, internal stress may be removed to the maximum extent;

4) Organic combination of the 3rd stretching unit and embossing mechanism, scientific structure, advanced configuration;

5) Self-circulating wind heat warming system, energy saving ;

6) High-accuracy good-quality screw, large extrusion capacity, constant extrusion pressure.

Detailed Images

Machine Parts and Features

Name:Main Extruder

Brand: YZJ

Original: Sichuan China

The main machine drive consists of frequency control motor and special hard tooth-surface reducer for plastic extruding machine. Forming part is composed of screw feed barrel, frame head and die. The raw material is heated from hopper to screw feed barrel, and the rough block is extruded.

Main Parts and Features

Name: The Stretching Unit
Brand: YZJ
Original: Sichuan China
The stretching unit is composed of frequency control motor, reducer, band drive, carry-over pinch roll and band press device.

Machine Parts and Features

Name: The Embosing Unit
Brand: YZJ
Original: Sichuan China
The embossing unit is composed of frequency control motor, band drive, band press device, which  forme band  through the embossing roller.

Main Parts and Features

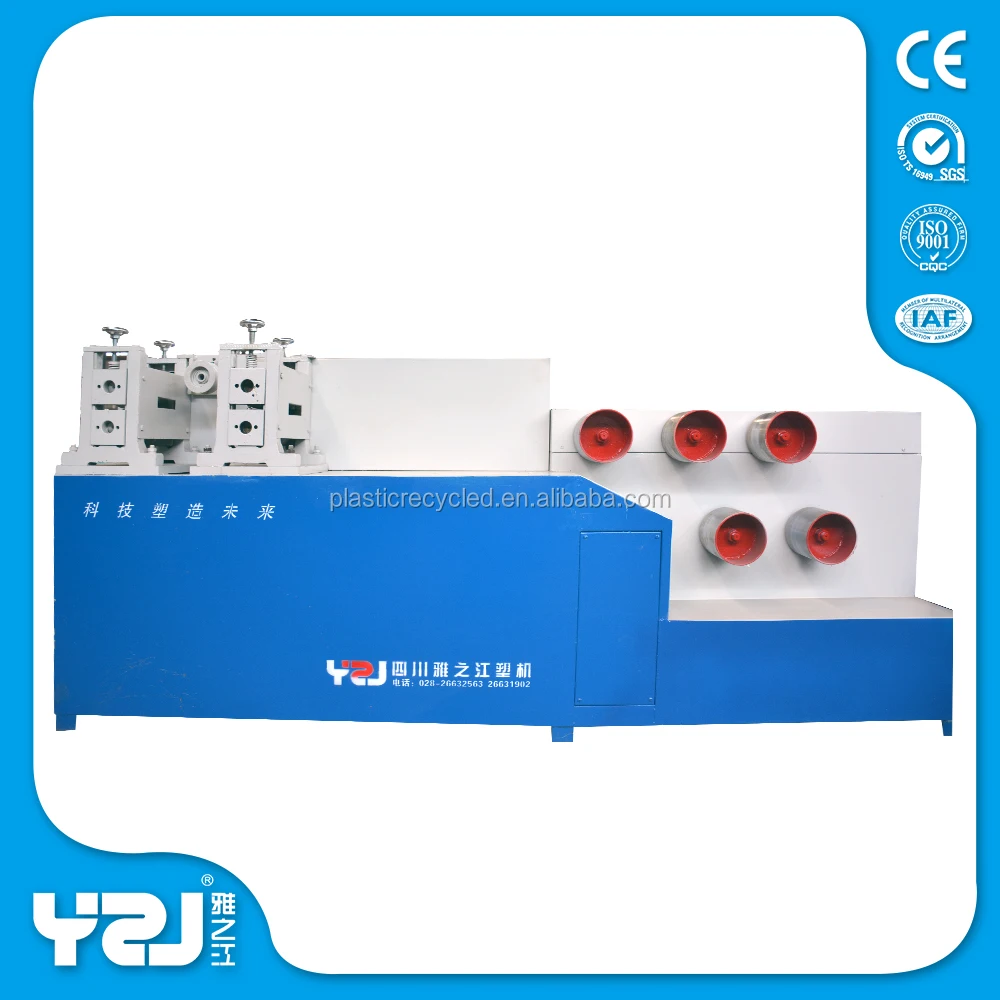

Name: Light Weight Curler
Brand: YZJ
Original: Sichuan China
Light weight curler is composed of torque motor, band drive, gear drive, band winding spool and travel rod. Different speed ratio is gained through gear, and different products may be winded in. The curler winds the accepted products and separates them as a single piece with specified shape and quality.

Certifications
Packing & Delivery
Packaging
 Texture of material
 Wood box
Weight
 Subject to actual weight
Packaging Details
Tile packing belt production machinery and pp plastic strap making machine is packed by stretch film packing and wooden box outside as customer's requirement, or nuke packed.
Delivery
 Ocean Shipping
 Low cost, aviation can not walk the basic products can go.
 Motor
/
 air transport
 Time is short, usually about 3-4 days to reach the destination airport.
Our Service

Installation debugging

After the purchase of equipment,
there are instructors to overseas installation, commissioning and training.

visit the factory directly

we will be devoted try the machine fou you , to carry out technical solutions.

regular return visit

regular return visit,24 hours to receive customer calls, answer your doubts at any time.
