YZJ Factory Supply Good Price Strapping Band Winding Machine

FOB Reference Price:Get Latest Price
US $11,000-60,800 / Set | 1 Set/Sets YZJ factory supply good price strapping band winding machine (Min. Order)
Supply Ability:
2 Set/Sets per Month YZJ factory supply good price strapping band winding machine
Port:
chongqing/shanghai
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Sichuan, China (Mainland)
Brand Name:
YZJ
Model Number:
YZJPP[LQD3-V]
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
factory supply strapping band winding machine
Other name:
pp strapping machine
Application:
PP strapping machine line
Cutting Method:
Back Rolling Cutting
Pressure:
90 tons
Export Markets:
America
Commodity name:
factory supply strapping band winding machine
Product:
PP strapping machine line
Type:
Belt Processing Machine
Item:
Satin Ribbon Making Machine
Packaging & Delivery
Packaging Details
YZJ factory supply good price strapping band winding machine is packed by stretch film packing and wooden box outside as customer's requirement, or nuke packed.
Delivery Time
30day
Video Description
Product Description

YZJ Factory Supply Good Price Strapping Band Winding Machine

Product Application

      The YZJPP intelligent light weight strapping band unit produced by our company through repeating research and development, based on the reinforced strapping band unit, is specially used for the top-grade light weight products with good quality, light gram weight and well rigidity. Its high-speed low-temperature stretching technology and optimized structure may reduce energy consumption to the maximum extent, simplify operating procedure and realize digital displayed accurate control. The unit has advantages of energy saving, great extrusion pressure, optimal embossing effect, high output, good formation, convenient maintenance, simple operation, safety and reliability. The single-band unit is an ideal device that is used to manufacture top-grade light weight strapping band. This unit is applicable to PP fresh material and used for producing light weight strapping band.

the YZJ factory supply good price strapping band winding machine

Engine
Engine model
Kw/rpm
22/1440
No. of cylinders
HP
5
Net Power
KW
120

Main performance parameters
Main performance parameters
m/min
260
Width of the Pp Strap
mm
8-15.5
Thickness of the Pp Strap
mm
0.5-0.8
Max. Capactiy
Kg/h
50-150



The parameters of Light environmental protection pp strapping machine
Weight
g/m
3.3-3.5
The fracture strain
KN
About 1200
Width
mm
12
Thickness
0.6mm
0.58-0.62
The Deviation of Width
mm
±0.4
The Deviation of Width
mm
±0.04

full automatic pp strap making machine,light weight pp strap making machine strap used in bundling bank money working principle:

Detailed Images

YZJ factory supply good price strapping band winding machine components:

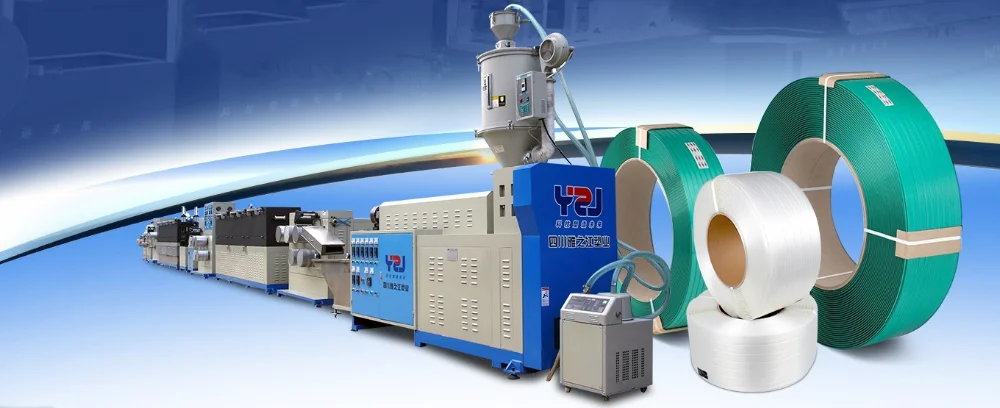

YZJ YZJ factory supply good price strapping band winding machine strap used in bundling bank money consists of a set of automatic suction machine, a set of twin-screw extruder, a set of stainless steel cooling water tank, three sets of traction units, an extension of the oven set, a set of printing machine, embossing set , A set of stereotypes oven unit, double-set winding unit composed of a set.

Machine Parts and Features

Name:Main Extruder

Brand: YZJ

Original: Sichuan China

The main machine drive consists of frequency control motor and special hard tooth-surface reducer for plastic extruding machine. Forming part is composed of screw feed barrel, frame head and die. The raw material is heated from hopper to screw feed barrel, and the rough block is extruded.

Main Parts and Features

Name: The Stretching Unit
Brand: YZJ
Original: Sichuan China
The stretching unit is composed of frequency control motor, reducer, band drive, carry-over pinch roll and band press device.

Machine Parts and Features

Name: The Embosing Unit
Brand: YZJ
Original: Sichuan China
The embossing unit is composed of frequency control motor, band drive, band press device, which  forme band  through the embossing roller.

Main Parts and Features

Name: Light Weight Curler
Brand: YZJ
Original: Sichuan China

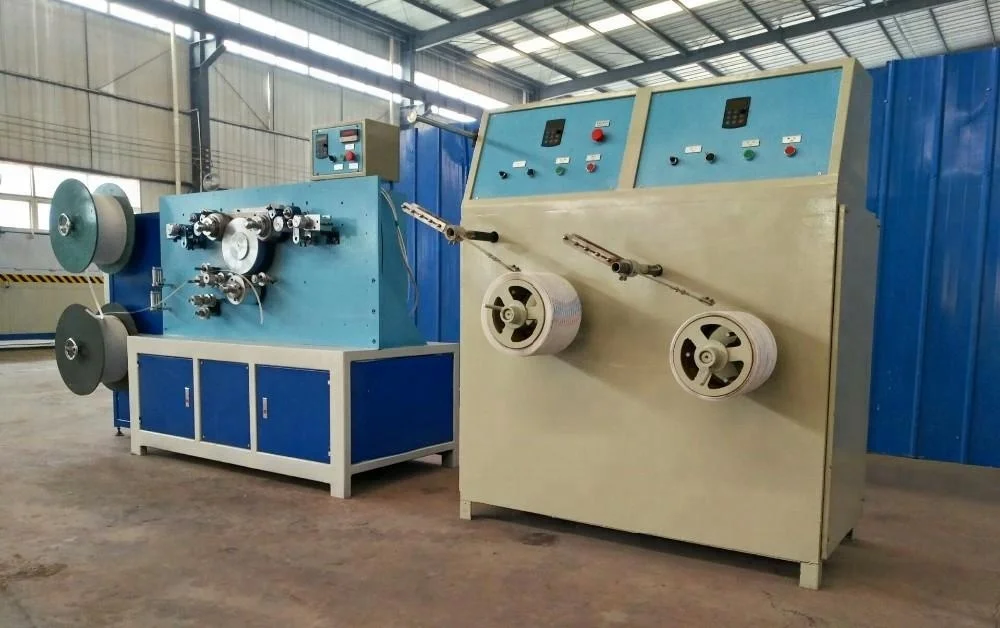

Light weight curler is composed of torque motor, band drive, gear drive, band winding spool and travel rod. Different speed ratio is gained through gear, and different products may be winded in. The curler winds the accepted products and separates them as a single piece with specified shape and quality.

Certifications
Customer Photo

The factory of a Egypt customer

The factory of a Sri Lanka customer

A South Africa customer is viewing our factory

Three Vietnam customer are viewing our factory

The factory of a Vietnam customer

A Jordan customer is viewing our factory

Our Service

Installation debugging

After the purchase of equipment,
there are instructors to overseas installation, commissioning and training.

visit the factory directly

we will be devoted try the machine fou you , to carry out technical solutions.

regular return visit

regular return visit,24 hours to receive customer calls, answer your doubts at any time.

Packing & Delivery
Packaging
 Texture of material
 Wood box
Weight
 Subject to actual weight
light environmental protection double belt pp strapping machinePackaging Details
YZJ factory supply good price strapping band winding machine is packed by stretch film packing and wooden box outside as customer's requirement, or nuke packed.
Delivery
 Ocean Shipping
 Low cost, aviation can not walk the basic products can go.
 Motor
/
 air transport
 Time is short, usually about 3-4 days to reach the destination airport.
